ETC Source 4WRD Color II 230V LED Retrofit Kit Stage Electrics
ETC Source 4WRD Color II 230V LED Retrofit Kit Black Stage Electrics
ETC Source 4WRD Color II 230V LED Retrofit  Stage Electrics
ETC Source 4WRD Color II Stage Electrics
ETC 7068A1211 Source 4WRD Color II Black with Stage Electrics

ETC 7068A1211 Source 4WRD Color II 230V LED Retrofit - Black

Item Code: 691-4561
Part Number: 7068A1211

Source 4WRD Color II

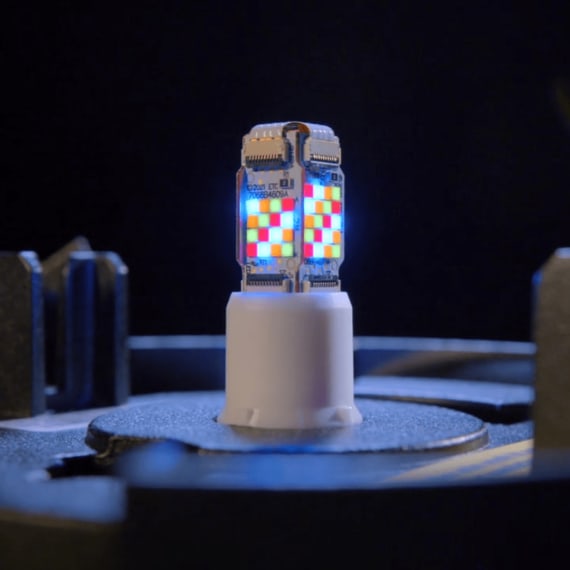

RGBA LED array for use with Full Size S4, S4WRD PAR and S4WRD PARNel bodies.

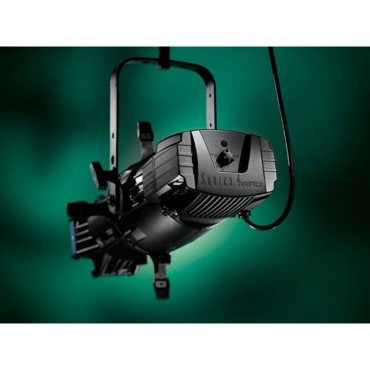

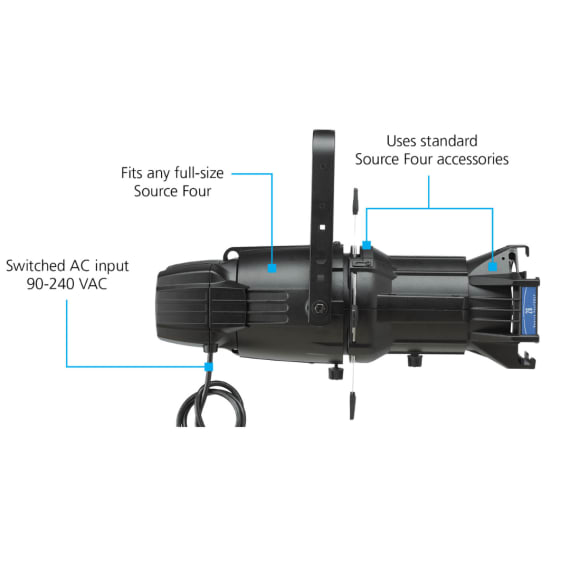

The Source 4WRD Color II represents a significant advancement in lighting technology, transforming your existing Source Four incandescent profile into a versatile RGBA LED fixture. This upgrade unlocks the benefits of additive colour mixing, vibrant washes, and rapid colour changes, offering more stage looks with fewer fixtures while consuming less energy. The upgrade process is quick, nondestructive, and takes less than five minutes to complete. Source 4WRD Color II operates on switched power (100–240 VAC) and dims via DMX.


Applications:

  • Energy-saving retrofits
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centres
  • Meeting rooms
  • Clubs
  • Theatres


Product Features:

  • New, patented LED array and colour mixing system
  • Increased brightness
  • 2x output in red
  • Improved colour gamut and uniformity
  • Industry-leading warranty and support


For more info on the specifications please see the data sheet available below.



Specifications

dB range 27 dBA (average at 1 m)
Weight 3.6 lb (1.63 kg) (Retrofit only)
Ambient operating temp 5°–40° C (41°–104° F)
Materials Cast aluminum
IP Rating IP20, indoor only
Fan (controllable) Yes (no)
Mounting options Yoke

Download The User Manual Here

Download The Datasheet Here

Download The Brochure Here
