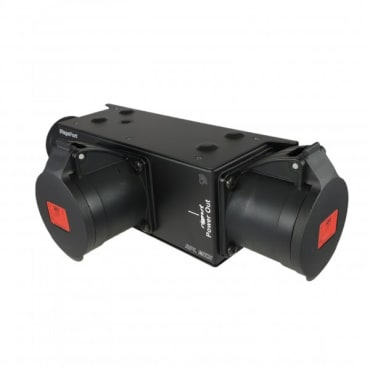

Rigport 0299025 RPL32-16CEE-MKII 32A 3ph to 1x 16A 3ph Distro + 32A 3ph Thru

The RPL32-16CEE-MKII is a 3-phase power distributor with CEE32 connections to a side CEE16 tap with self-resetting 16A fuse.

The RPL32-16CEE-MKII offers the greatest degree of flexibility, invisibility, and robustness on the ground or in the sky due to its dark CEE in/out and tapping of all three phases.

Different fastening methods for pipe clamps, safety couplings, standard couplings, etc.

Features:

• CEE Inline
• Small, maintenance-free on-stage power distributions
• Completely black for installation that is as inconspicuous as possible
• Can be mounted in the crossbeam with RPL-Clamp50
• M10 screw holder for attaching couplers, trigger clamps or similar
• 2x M4 mount
• Suitable for outdoor use

Specifications:

• Maximum current:16A, 32A
• Maximum temperature:55°C
• Weight: 1.6kg
• Conductor cross-section:6mm²
• Dimensions:321 x 90 x 100mm
• Material:Steel sheet
• HS Code:85369010
