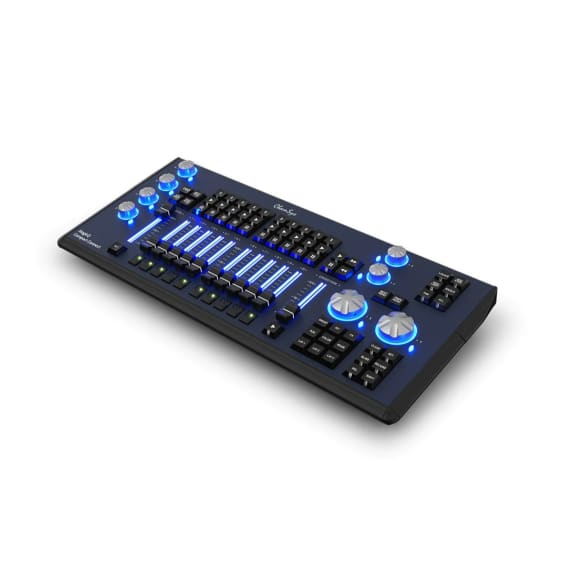

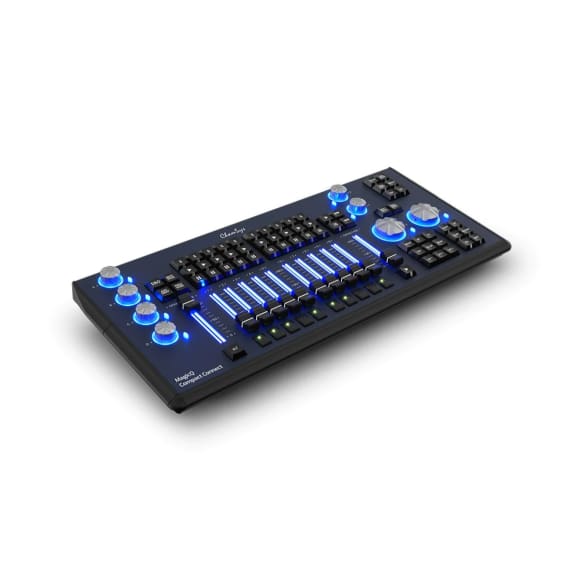

ChamSys CS200026 MagicQ Compact Connect

The MagicQ Compact Connect is a portable USB control surface for lighting, media, and LEDs that connects to your PC or Mac. The portable Compact Connect is enough to fit inside hand luggage and is crammed with useful functions.

It delivers up to 64 universes of ArtNet and sACN directly from its onboard network port without the need for additional licencing or dongles, and it has two direct DMX512 outputs. The Compact Connects design offers illuminated access to fixture parameters via 8 rotary encoders and live show control via 10 playback faders with separate Grand Master and Crossfader for level control. These faders also feature Flash, Go, and Select buttons. Additional connectivity and convenience are provided via an integrated USB hub, audio input, 10Scene/Remote Input port, and a functioning light socket. The Compact Connect is perfect for installation in clubs, venues, schools, theatres and  studios and as well as for usage by travelling lighting designers. This cost-effective option combines the strength of MagicQ software, which runs on Windows, Mac, or Linux with snappy tactile playback control.

Features

• In-built Network Interface
• 8 Attribute Encoders
• USB Ports: 5 (1 USB-C Input, 4 USB-A Out)
• 10 Playback Faders, 500 Pages
• Illuminated Playbacks
• 2 Direct DMX Outputs

Dimensions and Weights

• Height:65mm (2.56”)
• Width: 522mm (20.26”)
• Depth: 230mm (9.05”)
• Weight: 3.65kg (8.05 lbs)
