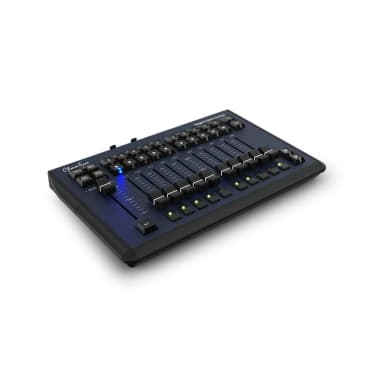

ChamSys CS200027 MagicQ Compact Mini Connect

A highly portable USB-powered control surface that combines physical playback control with the strength of MagicQ software is called the MagicQ Compact Mini Connect. The Compact Mini Connect connects to a Windows, Linux, or OS X system running MagicQ software, transforming computer into a potent lighting, media, and LED control centre. Ten playback faders, Flash, Go, and Select buttons, as well as a specific Grand Master fader, are included in the live show controls.

Theaters, concerts, clubs, and installations are perfect places for the Compact Mini Connect. The Compact Mini Connect has 1 direct DMX512 output and an onboard network connector that can send up to 64 universes of ArtNet and sACN. It can also control huge shows and provides users of larger MagicQ consoles with an affordable backup option.

Features

• 1 Direct DMX Output
• USB Powered
• Connects to Free MagicQ Software – Windows, Mac or Linux
• 10 Playback Faders, 500 Pages
• In-built Network Interface

 Dimensions and Weights

• Weight: 1.85kg (4.1lbs)
• Width: 327mm (12.8”)
• Depth: 204mm (8.03”)
• Height:45mm (1.77”)
