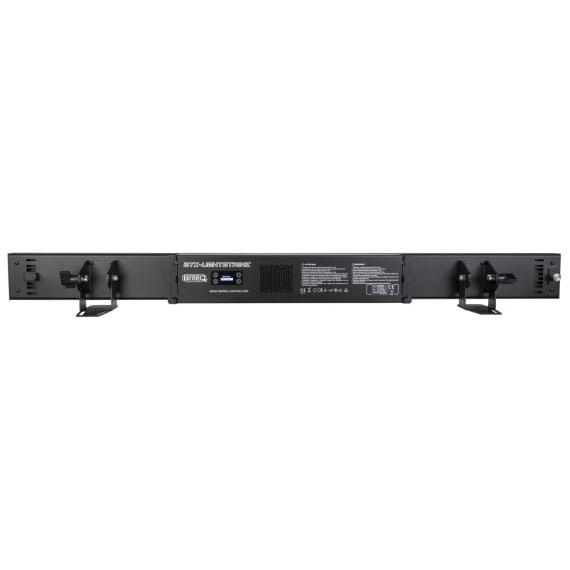

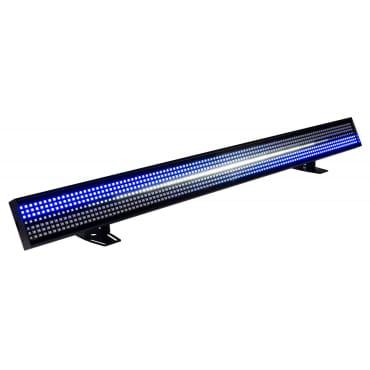

Briteq B04718 BTX-LIGHTSTRIKE LED Hybrid Pixel Mapping Batten

Item Code: 407-1563
Part Number: B04718

Introducing the Briteq BTX-LIGHTSTRIKE, a dynamic hybrid LED pixel mapping bar designed for versatility and power. With 112 ultra-bright cold white LEDs (16 zones) and 672 RGB LEDs (32 zones), this fixture is a game-changer for various applications, including TV studios and concert stages.


Here's what makes it stand out:

  • Compact and lightweight design for quick integration into any scenery
  • Versatile hybrid LED Pixel mapping bar suitable for rental jobs, TV studios, concert stages, discotheques, and more
  • Standard equipped with 3-pin XLR, RJ45 network, and PowerCON compatible connectors for easy daisy chaining
  • Two complementary effects for maximum impact: RGB LEDs on both sides of the central white strobe line and extremely bright cold-white LEDs
  • Multiple operating modes including limited-channel DMX modes and extended DMX modes for creative control
  • Support for Art-net and sACN for efficient large-scale setups
  • Four dimmer curves: linear, square, inverse square, and S-curve

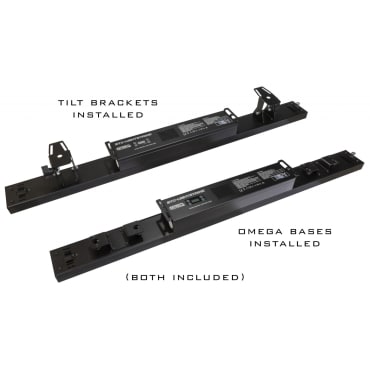

  • Two mounting options included: Omega bracket bases and Tilt mounting brackets for easy installation

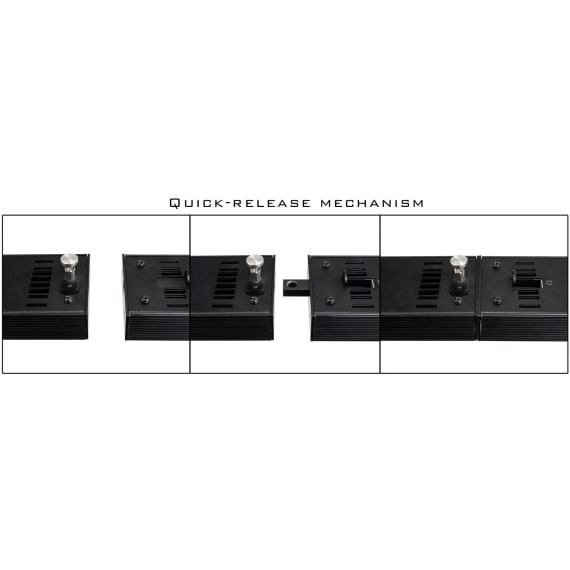

  • Inventive quick-release mechanism for connecting and aligning multiple projectors
  • Silent operation thanks to temperature-controlled cooling fans
  • Alphanumeric OLED display and touch keys for easy setup and control


Experience unparalleled flexibility and performance with the BTX-LIGHTSTRIKE, designed to elevate your lighting capabilities in any environment.

Specifications

Dimensions (cm) 100 x 8.4 x 11.1
Maximum DMX channels 113
Min. beam angle (°) 116
Max. beam angle (°) 116
Max. refresh rate (kHz) 12
Power Consumption 350 W
Weight 5.5 Kg
Minimum DMX channels 6
Powerinput AC 100 - 240V, 50/60Hz
Protocol Art-Net, sACN, DMX, RDM
Colour Black
Modes DMX
Fixation Included omega bracket
IP Rating Indoor
Display OLED

Download The Manual Here

Download The Leaflet Here

Download the EC Declaration Here

Includes:
Powercon Socket to Bare Ends 1.5mm - 1m
